Rapport de calcul
Carte Hebdomadaire

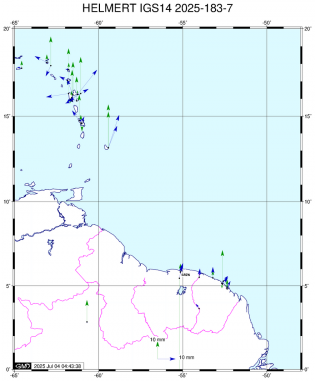

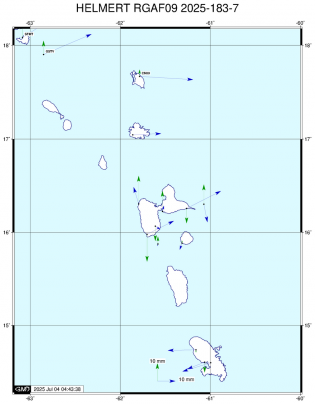

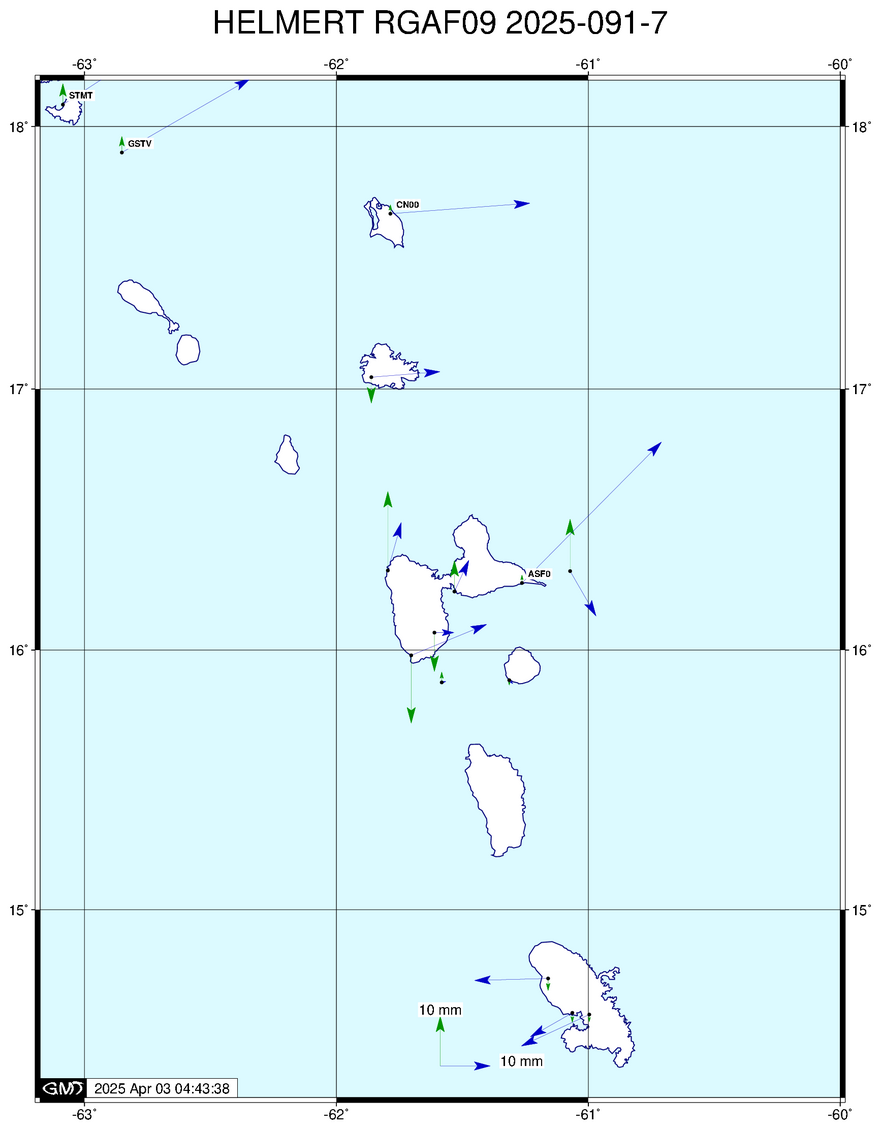

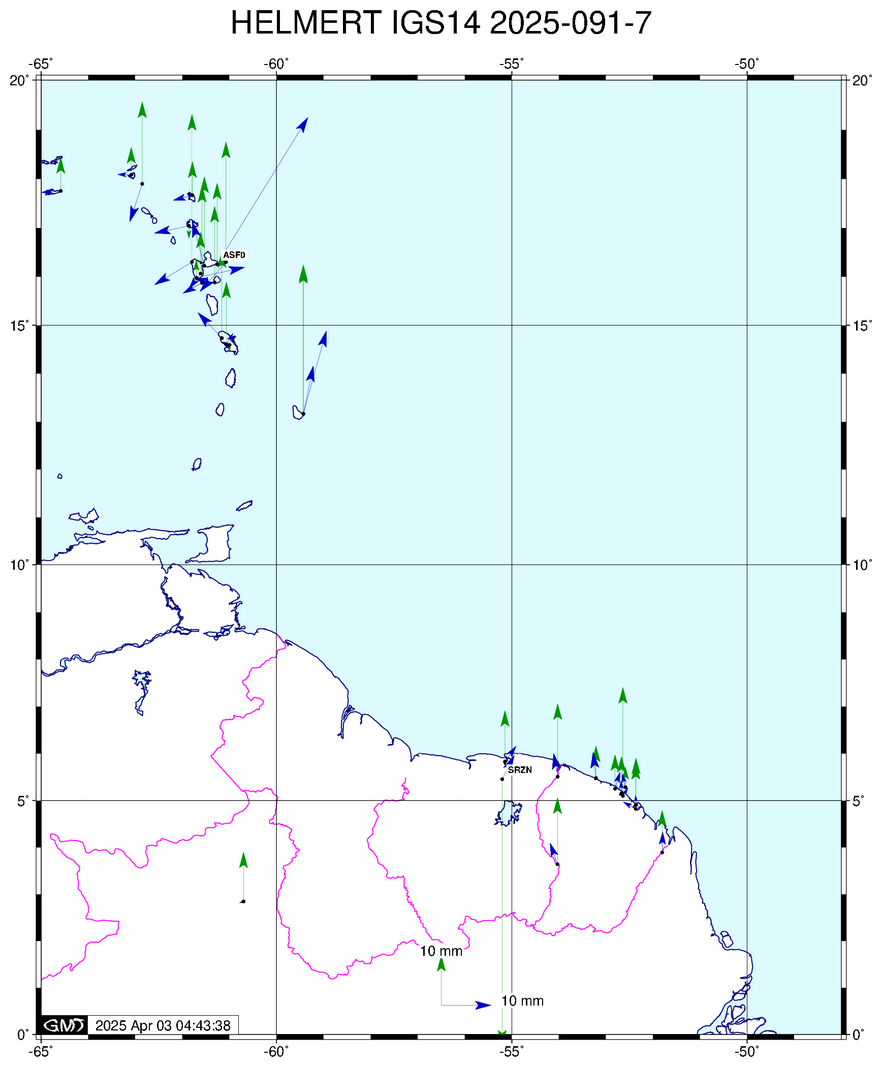

 | Résidus de la mise en référence des coordonnées issues du calcul sur les coordonnées initiales IGS08Les flèches bleues représentent les résidus planimétriques et les flèches vertes les résidus selon la composante verticale.Les noms des stations sont affichés si le résidu planimétrique est supérieur à 15 mm ou si le résidu selon la composante verticale est supérieur à 25 mm |
Compte rendu de calcul Bernese GPS Software
Informations sur le processusSessions intégrées au calculEstimation des coordonnées et des ZTD finaux - ADDNEQ2
Sessions intégrées au calcul
| Année | DOY | Session |
|---|---|---|
| 2017 | 259 | 0 |
| 2017 | 260 | 0 |
| 2017 | 261 | 0 |
| 2017 | 262 | 0 |
| 2017 | 263 | 0 |
| 2017 | 264 | 0 |
| 2017 | 265 | 0 |
Estimation des coordonnées et des ZTD finaux - ADDNEQ2
Solutions individuelles| Statistiques | |
|---|---|
| Paramètres explicites | 126 |
| Paramètres implicites | 24916 |
| Paramètres ajustés | 25042 |
| Observations | 1303674 |
| Degré de liberté | 1278632 |
| Chi**2/DOF | 2.18 |
| Stations | 42 |
StatistiquesEquations normalesSolutions individuelles| Fichier | Début | Fin | Obs. | Par. | Dof |
|---|---|---|---|---|---|
| GUYN_172590.NQ0 | 2017-09-16 00:00:00 | 2017-09-16 23:59:30 | 191772 | 3949 | 187823 |
| GUYN_172600.NQ0 | 2017-09-17 00:00:00 | 2017-09-17 23:59:30 | 179115 | 3470 | 175645 |
| GUYN_172610.NQ0 | 2017-09-18 00:00:00 | 2017-09-18 23:59:30 | 189745 | 3648 | 186097 |
| GUYN_172620.NQ0 | 2017-09-19 00:00:00 | 2017-09-19 23:59:30 | 183052 | 3948 | 179104 |
| GUYN_172630.NQ0 | 2017-09-20 00:00:00 | 2017-09-20 23:59:30 | 183716 | 3549 | 180167 |
| GUYN_172640.NQ0 | 2017-09-21 00:00:00 | 2017-09-21 23:59:30 | 182860 | 3481 | 179379 |
| GUYN_172650.NQ0 | 2017-09-22 00:00:00 | 2017-09-22 23:59:30 | 193411 | 3684 | 189727 |
StatistiquesEquations normalesSolutions individuelles| Stat | Nb | type | Rms (mm) | Min (mm) | Max (mm) |
|---|---|---|---|---|---|
| ABMF | 1 | N | 0.8 | -0.8 | -0.8 |
| E | 2.3 | 2.3 | 2.3 | ||
| U | 4.5 | -4.5 | -4.5 | ||
| AREG | 7 | N | 0.6 | -0.4 | 0.8 |
| E | 1.6 | -0.9 | 2.8 | ||
| U | 2.3 | -3.4 | 2.6 | ||
| BOGT | 7 | N | 0.7 | -0.7 | 1.3 |
| E | 2.7 | -3.7 | 3.6 | ||
| U | 4.0 | -3.4 | 7.9 | ||
| BRAZ | 6 | N | 2.6 | -4.6 | 2.0 |
| E | 2.4 | -3.7 | 2.6 | ||
| U | 3.7 | -5.1 | 4.2 | ||
| BRFT | 6 | N | 1.6 | -2.3 | 1.7 |
| E | 2.8 | -2.6 | 5.0 | ||
| U | 3.5 | -4.5 | 6.2 | ||
| BRMU | 7 | N | 2.8 | -4.6 | 2.0 |
| E | 2.2 | -3.5 | 3.7 | ||
| U | 7.1 | -7.0 | 12.0 | ||
| CHET | 7 | N | 1.7 | -2.3 | 1.8 |
| E | 2.0 | -1.9 | 2.8 | ||
| U | 4.1 | -4.8 | 8.2 | ||
| CHPG | 7 | N | 2.9 | -4.9 | 3.0 |
| E | 3.9 | -3.3 | 8.4 | ||
| U | 5.8 | -8.1 | 5.2 | ||
| CHPI | 7 | N | 2.8 | -4.9 | 2.7 |
| E | 3.8 | -2.7 | 7.9 | ||
| U | 6.0 | -8.1 | 5.6 | ||
| COLA | 3 | N | 2.1 | -1.8 | 1.9 |
| E | 2.7 | -2.6 | 2.8 | ||
| U | 5.9 | -2.6 | 7.7 | ||
| CPVG | 1 | N | 0.4 | -0.4 | -0.4 |
| E | 1.3 | 1.3 | 1.3 | ||
| U | 4.6 | -4.6 | -4.6 | ||
| FFT2 | 7 | N | 2.8 | -4.7 | 3.8 |
| E | 2.2 | -3.2 | 3.6 | ||
| U | 3.0 | -5.0 | 3.5 | ||
| GODE | 6 | N | 1.9 | -2.3 | 1.3 |
| E | 1.9 | -1.6 | 2.8 | ||
| U | 5.0 | -2.8 | 7.4 | ||
| GUAT | 7 | N | 1.7 | -2.3 | 3.1 |
| E | 1.2 | -0.0 | 1.6 | ||
| U | 5.5 | -6.4 | 7.3 | ||
| HAMM | 7 | N | 1.5 | -3.4 | 0.8 |
| E | 1.5 | -0.6 | 3.1 | ||
| U | 4.2 | -5.3 | 8.5 | ||
| HLFX | 7 | N | 2.3 | -3.6 | 1.1 |
| E | 2.0 | -3.4 | 3.5 | ||
| U | 5.7 | -7.0 | 8.4 | ||
| HNPT | 7 | N | 1.8 | -2.8 | 1.0 |
| E | 1.8 | -1.7 | 2.6 | ||
| U | 4.3 | -2.9 | 8.1 | ||
| INEG | 7 | N | 0.9 | -1.3 | 0.9 |
| E | 2.7 | -2.2 | 3.9 | ||
| U | 2.1 | -2.3 | 3.7 | ||
| KOUG | 7 | N | 1.4 | -2.0 | 1.4 |
| E | 2.8 | -4.6 | 4.7 | ||
| U | 6.0 | -8.4 | 7.9 | ||
| KOUR | 7 | N | 1.4 | -1.8 | 2.0 |
| E | 3.0 | -4.1 | 5.7 | ||
| U | 6.6 | -11.4 | 7.5 | ||
| LMMF | 7 | N | 3.0 | -3.7 | 4.6 |
| E | 2.5 | -3.8 | 3.5 | ||
| U | 5.5 | -6.5 | 7.6 | ||
| MANA | 7 | N | 1.9 | -1.3 | 3.2 |
| E | 1.7 | -1.0 | 3.6 | ||
| U | 3.5 | -2.6 | 7.0 | ||
| MAS1 | 7 | N | 2.4 | -4.6 | 2.9 |
| E | 3.7 | -7.0 | 2.2 | ||
| U | 5.6 | -4.7 | 9.4 | ||
| MDO1 | 7 | N | 1.6 | -3.2 | 1.4 |
| E | 2.8 | -1.8 | 4.2 | ||
| U | 5.6 | -4.8 | 11.2 | ||
| MMD1 | 7 | N | 2.9 | -2.8 | 5.5 |
| E | 2.3 | -2.8 | 3.4 | ||
| U | 7.5 | -9.6 | 12.3 | ||
| MPR1 | 7 | N | 2.0 | -3.4 | 2.1 |
| E | 3.3 | -3.5 | 4.4 | ||
| U | 8.6 | -10.6 | 12.0 | ||
| MTP1 | 7 | N | 1.6 | -2.2 | 1.8 |
| E | 2.3 | -1.8 | 4.0 | ||
| U | 6.9 | -6.9 | 9.8 | ||
| MTY2 | 7 | N | 0.5 | -0.9 | 0.1 |
| E | 3.1 | -3.0 | 4.8 | ||
| U | 6.8 | -6.2 | 8.5 | ||
| PDEL | 7 | N | 2.2 | -3.9 | 2.0 |
| E | 3.5 | -6.6 | 2.2 | ||
| U | 3.5 | -3.2 | 5.9 | ||
| PMB1 | 7 | N | 3.6 | -5.2 | 4.9 |
| E | 2.9 | -5.8 | 2.9 | ||
| U | 5.7 | -9.4 | 8.9 | ||
| POVE | 7 | N | 0.7 | -0.8 | 1.1 |
| E | 1.8 | -0.6 | 4.1 | ||
| U | 8.2 | -6.4 | 17.8 | ||
| PPTG | 7 | N | 1.7 | -2.7 | 1.8 |
| E | 2.8 | -5.7 | 2.9 | ||
| U | 6.2 | -11.2 | 7.5 | ||
| RDSD | 4 | N | 1.5 | -1.3 | 2.0 |
| E | 3.4 | -2.7 | 5.0 | ||
| U | 3.5 | -1.7 | 4.4 | ||
| SALU | 7 | N | 1.2 | -1.9 | 1.6 |
| E | 2.2 | -1.7 | 4.8 | ||
| U | 3.9 | -3.8 | 6.5 | ||
| SAVO | 6 | N | 2.9 | -4.8 | 2.4 |
| E | 1.8 | -1.3 | 3.3 | ||
| U | 3.1 | -5.3 | 2.8 | ||
| SCUB | 7 | N | 4.0 | -8.3 | 3.6 |
| E | 4.1 | -4.3 | 5.2 | ||
| U | 6.9 | -10.4 | 8.5 | ||
| SSIA | 7 | N | 1.9 | -1.7 | 2.6 |
| E | 2.1 | -1.8 | 2.9 | ||
| U | 4.7 | -5.4 | 9.0 | ||
| STHL | 7 | N | 2.2 | -1.8 | 4.0 |
| E | 4.7 | -9.8 | 3.8 | ||
| U | 6.3 | -10.6 | 7.7 | ||
| STPM | 7 | N | 2.3 | -3.6 | 1.8 |
| E | 2.0 | -3.5 | 2.8 | ||
| U | 5.0 | -4.2 | 11.0 | ||
| TOL2 | 7 | N | 1.3 | -2.1 | 1.7 |
| E | 2.4 | -1.3 | 4.2 | ||
| U | 6.7 | -6.6 | 11.6 | ||
| TXLU | 7 | N | 1.2 | -2.1 | 0.6 |
| E | 3.0 | -2.5 | 4.7 | ||
| U | 3.6 | -4.5 | 6.2 | ||
| UNSA | 7 | N | 2.1 | -3.3 | 2.5 |
| E | 3.9 | -3.3 | 8.5 | ||
| U | 5.4 | -8.8 | 8.4 |
